Item:RFID anti metal tag
Material:ABS

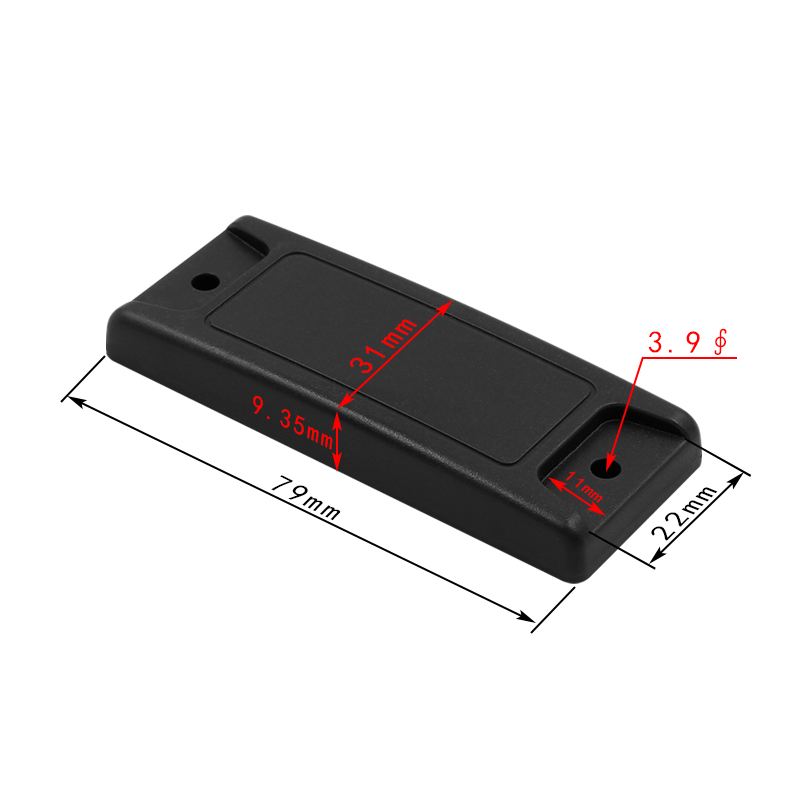

Size:79*22mm
Chip:Ucode EPC G2(custom)
Frequency:860-960MHz
Protocol:ISO 18000
Reading range:1-6 meters(based on reader)
Operating temperature:-35~+55℃
Working life:Writing 100,000 times, data can be saved for 10 years.
Feature:self-adhesive and screw
EPC G2 RFID Anti-Metal ABS Tags
Technical Parameters:
| RFID Model | RFID Label |
| Chip | Ucode EPC G2 |
| Material | ABS |
| Size | 79*22mm (Accept custom size) |
| Features | 1. The use of high temperature engineering plastic packaging. 2. Can be applied in different media occasions. 3. Waterproof and dustproof, durable, easy to use. 4. Can encapsulate a variety of frequency bands of the chip. |
| Operating temperature | -30ºC~75ºC |
| Packing | 50pcs/ bag, 1000pcs/ctn, carton size:30*30cm Accept customized package |
Feature:

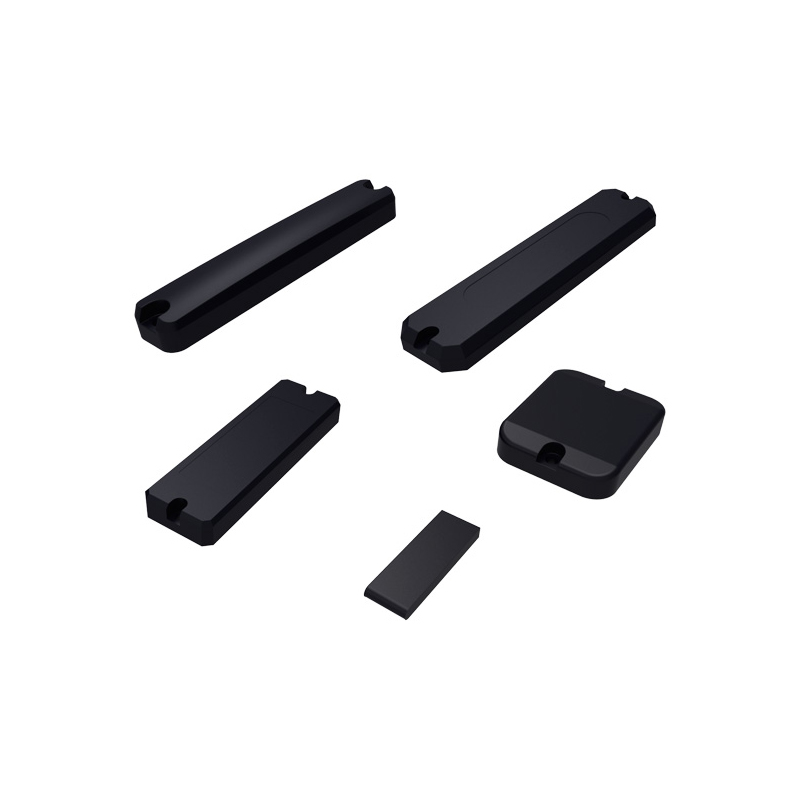

The long and short series of labels, designed for anti-metal reflection interference UHF band electronic tags. The electronic label can be installed on any medium surface (including metal), for example, can be used in: plastic, wood, glass, metal, plexiglass, cardboard boxes, and even liquid tanks and other applications. Can be widely used in data automation management of various fields. It is widely used in logistics and transportation, commodity item-level label, traffic management, patrol, and anti-theft, etc., which can be used for EPC world standard coding format logistics information tracking digital products.
1- 125KHZ LF RFID chip
Production Description:
LF rfid chip (125khz low frequency rfid chip) is widely used RFID technology.The chip we embed is original from original chip company.
Each of LF rfid chip have a unique seiral number.It is great solution for access control, time attendance system which do not require very high security level.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of LF RFID chip
| Chip tpe | Memory size | Frequency | Protocol | Readable/Writable | Contact/contactless |
| TK4100 | 64 bits | 125KHZ | ISO11784/85 | Read only | contactless |
| EM4200 | 64 bits | 125KHZ | ISO11784/85 | Read only | contactless |
| EM4305 | 512 bits | 125KHZ | ISO11784/85 | R/W | contactless |
| EM4450 | 1K bits | 125KHZ | R/W | contactless | |
| T5577 | 363 bits | 125KHZ | R/W | contactless | |
| HID | 125KHZ | R/W | contactless |
2- 13.56 MHZ HF RFID chip
Production Description:
HF rfid chip (13.56mhz high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for access control, Public transportation, Electronic toll collection, Loyalty cards, Event ticketing, Car parking, Electronic ticketing in public transport, Road tolling, Airline tickets, Home automation and appliances, Consumer electronics, Healthcare, Printers, Smart meters, Library and rental services, Healthcare, Ski ticketing, Asset management and smart shelf solutions, Factory automation etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of HF RFID chip
| Chip type | Memory size | Frequency | Protocol | Readable/Writable | Contact/contactless |
| MIFARE Ultralight | 64 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE Ultralight C | 192 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 203 | 168 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 210 | 80 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 213 | 180 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 215 | 540 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 216 | 924 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Topaz 512 | 512 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MF1 S50 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| F08 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ISSI 14439 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| TKS50 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MF1 S70 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| FM11 RF32 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ISSI 14469 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 2K | 2 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 4K | 4 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 8K | 8 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE PLUS S2K | 2048 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE PLUS S4K | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ICODE SLI | 1K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| ICODE SLI-S | 2K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| ICODE SLI-X | 1K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| T12 K | 2K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| TAG IT | 2 K | 13.56 MHZ | ISO15693 | R/W | Contactless |
3- 860-960 MHZ UHF RFID chip
Production Description:
UHF rfid chip (860-960mhz ultra high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for Supply Chain Management, Distribution Logistics, Product Authentication, Asset Inventory and Tracking, Baggage Handling and Tracking, Item Level Tagging, Consumer electronics, Fashion retail, FMCG, Supply chain management, Asset management etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of UHF RFID chip
| Chip type | Memory size | Frequency | Protocol | Readble/writable | Contact/contactless |
| Alien Higgs 3 | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| Impinj Monza 4 | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| UCODE G2XM | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| UCODE G2XL | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| EPC | 96 bytes | 860-960MHZ | ISO18000-6C | R/W | Contactless |
Application:
The label is located at both ends of the hole, can be fixed in the application of goods, because it can be used in any medium, so the application is very extensive, as we can manage the country's trash, because the trash loaded material types And in different places, the material of the trash can also be different, so in view of this condition, the use of long and short labels is very suitable for each garbage bin with this electronic label for the garbage storage vehicle installed on the GPS , The garbage storage truck to the corresponding location of the operation, the electronic label and garbage storage and transportation on the "credit card device" induction, in the management of the management platform on the electronic map can show the relevant operations, through similar " Internet of things, "the digital management, the formation of integrated sanitation digital management network, which can effectively solve the garbage does not work on time and a series of problems.
Our company:
SHENZHEN KONGLAM RFIDTECH CO.,LTD, founded in June 2009, is a high-tech enterprise specializing in development, production and sale of smart cards, RFID wristbands and Labels.
KONGLAM deals in RFID wristbands series, RFID Labels series and smart card series etc. mainly and therefore customer requirement oriented production and customized non-standard product manufacturing are allowed. Our chips for product application are supplied to many famous semi-conductor manufacturers in the world, including NXP founded by Phil ips, EM, TI, ST, IMPINJ, ATMEL, INSIDE of France, JEWEL of the UK as well as Fudan Microelectronics and Huahong Integrated Circuit etc. of our country. Our products can be widely used in security, all-in-one-card for door access, medical treatment, exhibition, tourism, entertainment, food traceability, assets management, storage logistics etc.
KONGLAM is specializ ed and deals in new product research development and manufacturing process thanks to the rich experience in RFID management. We have a perfect after-sales service system --- the one-to-one service mode is provided, ensuring the quickest response to customer, treatment for customer feedback and considerate before- in- after-sales services.
KONGLAM, relying on our accurate market positioning and continuously innovative business strategies, can provide the highest cost performance products in the world. Our products exported to the Europe and America have won golden opinions and supports in the industry.
We will always be wholeheartedly in providing the first-rate services for customers, system integration dealers and agents in the world with our consistent principle of "Good Faith, Excellent, and Innovation".
Sincere cooperation and win-win outstanding achievements are always expected!
