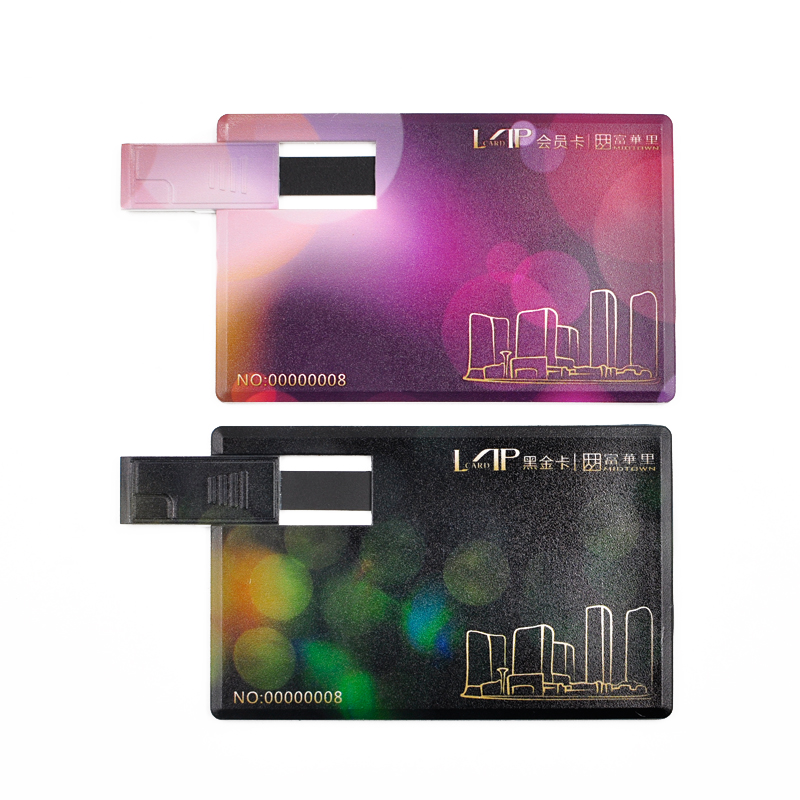

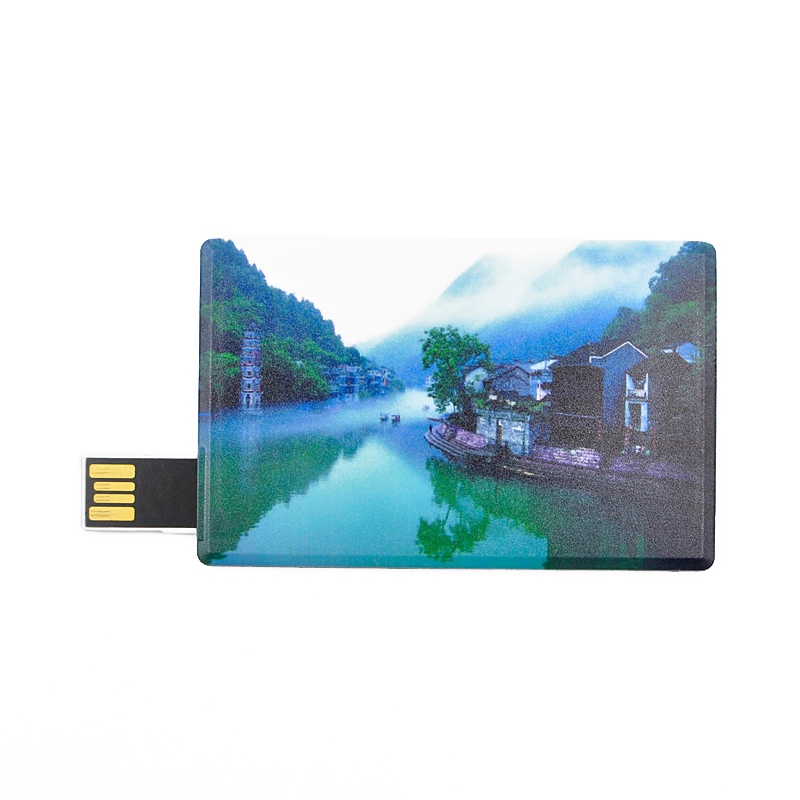

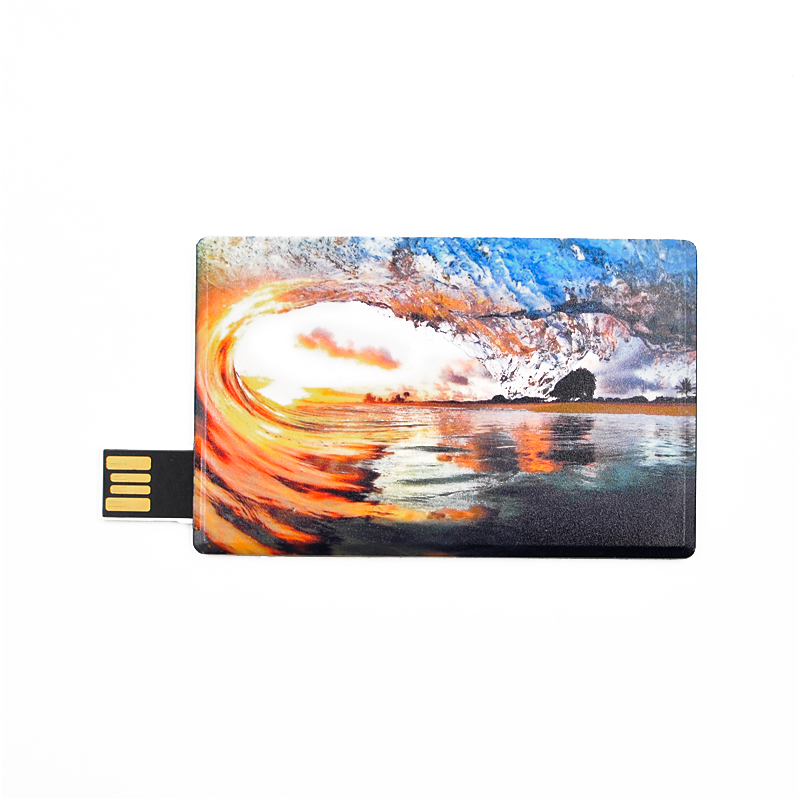

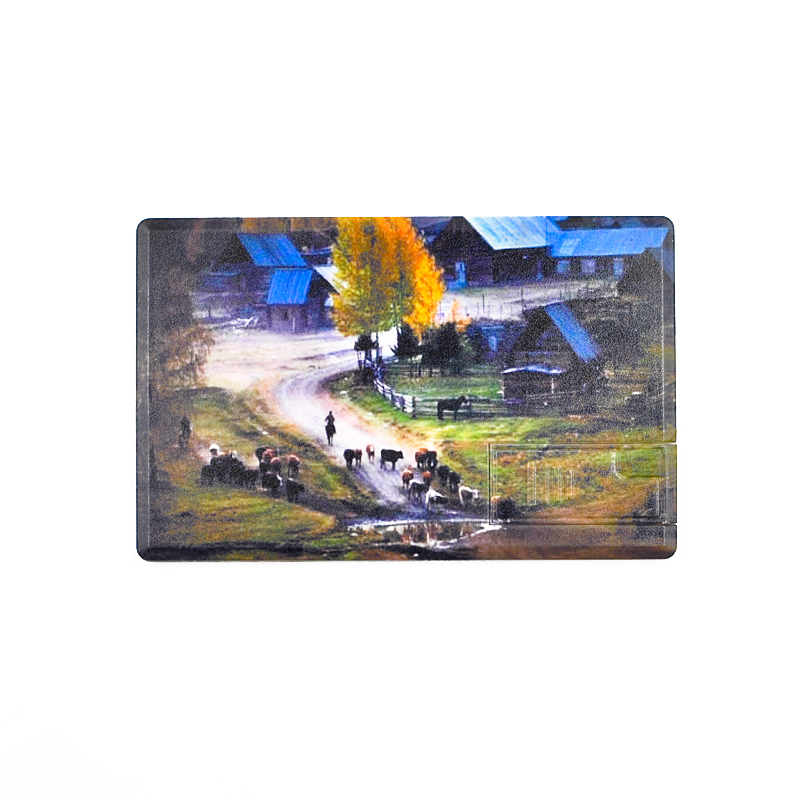

Item:smart card
Chips:Mifare classic 1K,F08,NFC(custom)
Protocol:ISO14443
Frequency:13.56MHz
Colors:blue, green, red, white, black (custom).
Size:85*54mm(custom)
Logo:silkscreen, offset printing etc.
Feature:8GB USB flash drive (custom)
Technical Parameters:
| Item | smart card |
| Chip | S50,F08,NFC(custom) |
| Material | PVC All material are eco-friendly and safe for Children, meet EU standards |
| Size | 85*54mm (Accept custom size) |
| Color | red, yellow, blue, green ( multi-colors are available) |
| Process | Customized logo is available; Type of logo: Debossed, Debossed and colorfilled in,Embossed,Embossed with color,Screen Printed,CMYK printed,etc |
| Operating temperature | -30ºC~219ºC |
| Weight | 7g/pcs |
| Packing | 100pcs/opp bag,20000/ carton size:25*22*12cm; Accept customized package |
| Capacity | 4/8/32/64/128 G tec. |
Features:
1. Water park, sauna wrist strap, with non-toxic, no cracking, long life, do not stimulate the skin and so on.
2. The use of closed-loop wristbands, bright colors, feel good, comfortable to wear.
3. After installing the electronic label, can be used for digital tracking.
4. Adjustable size, flexible, easy to wear, easy to use, waterproof, moisture, shock and high temperature.
1- 125KHZ LF RFID chip
Production Description:
LF rfid chip (125khz low frequency rfid chip) is widely used RFID technology.The chip we embed is original from original chip company.
Each of LF rfid chip have a unique seiral number.It is great solution for access control, time attendance system which do not require very high security level.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of LF RFID chip
| Chip tpe | Memory size | Frequency | Protocol | Readable/Writable | Contact/contactless |
| TK4100 | 64 bits | 125KHZ | ISO11784/85 | Read only | contactless |
| EM4200 | 64 bits | 125KHZ | ISO11784/85 | Read only | contactless |
| EM4305 | 512 bits | 125KHZ | ISO11784/85 | R/W | contactless |
| EM4450 | 1K bits | 125KHZ | R/W | contactless | |
| T5577 | 363 bits | 125KHZ | R/W | contactless | |
| HID | 125KHZ | R/W | contactless |
2- 13.56 MHZ HF RFID chip
Production Description:
HF rfid chip (13.56mhz high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for access control, Public transportation, Electronic toll collection, Loyalty cards, Event ticketing, Car parking, Electronic ticketing in public transport, Road tolling, Airline tickets, Home automation and appliances, Consumer electronics, Healthcare, Printers, Smart meters, Library and rental services, Healthcare, Ski ticketing, Asset management and smart shelf solutions, Factory automation etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of HF RFID chip
| Chip type | Memory size | Frequency | Protocol | Readable/Writable | Contact/contactless |
| MIFARE Ultralight | 64 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE Ultralight C | 192 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 203 | 168 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 210 | 80 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 213 | 180 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 215 | 540 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Ntag 216 | 924 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| Topaz 512 | 512 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MF1 S50 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| F08 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ISSI 14439 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| TKS50 | 1024 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MF1 S70 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| FM11 RF32 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ISSI 14469 | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 2K | 2 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 4K | 4 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE DESFIRE EV1 8K | 8 K | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE PLUS S2K | 2048 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| MIFARE PLUS S4K | 4096 bytes | 13.56 MHZ | ISO1443A | R/W | Contactless |
| ICODE SLI | 1K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| ICODE SLI-S | 2K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| ICODE SLI-X | 1K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| T12 K | 2K | 13.56 MHZ | ISO15693 | R/W | Contactless |
| TAG IT | 2 K | 13.56 MHZ | ISO15693 | R/W | Contactless |
3- 860-960 MHZ UHF RFID chip
Production Description:
UHF rfid chip (860-960mhz ultra high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for Supply Chain Management, Distribution Logistics, Product Authentication, Asset Inventory and Tracking, Baggage Handling and Tracking, Item Level Tagging, Consumer electronics, Fashion retail, FMCG, Supply chain management, Asset management etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.
Specifications of UHF RFID chip
| Chip type | Memory size | Frequency | Protocol | Readble/writable | Contact/contactless |
| Alien Higgs 3 | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| Impinj Monza 4 | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| UCODE G2XM | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| UCODE G2XL | 512 bits | 860-960MHZ | ISO18000-6C | R/W | Contactless |
| EPC | 96 bytes | 860-960MHZ | ISO18000-6C | R/W | Contactless |
Applications:
Widely used in hospital patient identification, birth of the baby's identification, prison management, custody management, amusement park tickets. Bathing beach, airport parcel, postal service.
RFID wristbands are mainly used for frequent wetting because the silicone wrist strap has a good waterproof function and flexibility, so it is very suitable for making silicone wrist strap, bring the watch beautiful and beautiful is also very practical, good feel completely Affect. The silicone label is made for high temperature operation environment, because the silicone itself has a very good anti-shock high temperature performance, it is very suitable for high temperature production workshop and other places. Such as the water park locker is the application of the kind of silicone wrist watch, greatly facilitate the storage of personal items and improve the safety of the storage.
Widely used in access control, consumption, foot bath sauna, bath massage, spa time management, swimming pool, bath, cooling pool, water patrol, field operations and other hot and humid environment, prolonged soaking in the water does not affect the use of the product.
Our company:
SHENZHEN KONGLAM RFIDTECH CO.,LTD, founded in June 2009, is a high-tech enterprise specializing in development, production and sale of smart cards, RFID wristbands and Labels.KONGLAM deals in RFID wristbands series, RFID Labels series and smart card series etc. mainly and therefore customer requirement oriented production and customized non-standard product manufacturing are allowed. Our chips for product application are supplied to many famous semi-conductor manufacturers in the world, including NXP founded by Phil ips, EM, TI, ST, IMPINJ, ATMEL, INSIDE of France, JEWEL of the UK as well as Fudan Microelectronics and Huahong Integrated Circuit etc. of our country. Our products can be widely used in security, all-in-one-card for door access, medical treatment, exhibition, tourism, entertainment, food traceability, assets management, storage logistics etc.
KONGLAM is specializ ed and deals in new product research development and manufacturing process thanks to the rich experience in RFID management. We have a perfect after-sales service system --- the one-to-one service mode is provided, ensuring the quickest response to customer, treatment for customer feedback and considerate before- in- after-sales services.
KONGLAM, relying on our accurate market positioning and continuously innovative business strategies, can provide the highest cost performance products in the world. Our products exported to the Europe and America have won golden opinions and supports in the industry.
We will always be wholeheartedly in providing the first-rate services for customers, system integration dealers and agents in the world with our consistent principle of "Good Faith, Excellent, and Innovation".
Sincere cooperation and win-win outstanding achievements are always expected!
