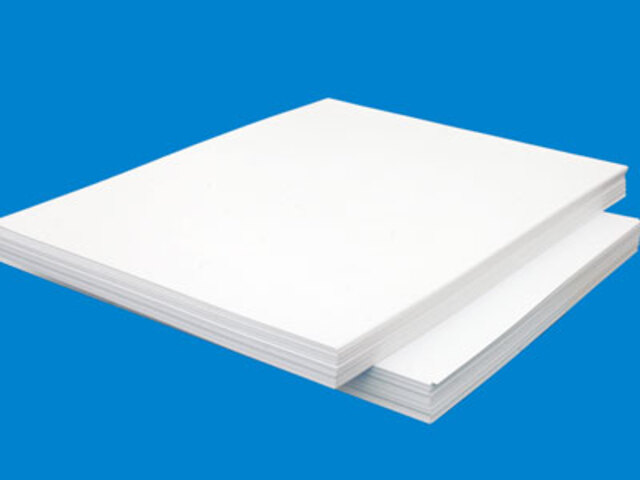

PVC core for IC card

Product introduction

INTRODUCTION

PACKING

Product model	Product name	Thickness Range mm	Color	Vicat ℃	dynes/cm	Apparent density g/cm³	Peel strength N/cm	Main application
PVC-A	PVC Core for IC card and contact IC card	0.25~0.85	White	78±2	34~44	1.35~1.45	/	It is mainly used for making IC card. IC card is integrated circuit card, and the plastic card embedded in integrated circuit chip, it is widely used for finance, tax-control, public security, traffic, post and telecommunications, communication, service, medical treatment, insurance and other various fields. It can be used for making ATM card, phone card, Medicare card, entrance guard card and other smart card

PVC-ABS(88)（SIM Card）Product Specification

	Item		Specification
1	Thickness	Thickness mm	Tolerance (95% Measured value)
		0.15~0.20	-0.010~0.010
		0.21~0.27	-0.011~0.011
		0.28~0.35	-0.012~0.012
		0.36~0.47	-0.014~0.014
		0.48~0.60	-0.016~0.016
		0.61~0.75	-0.017~0.017
		0.76~0.82	-0.019~0.019
	Dimension mm		Utmost Tolerance
			Rough Cutting	Precise Cutting
	Width	≤1000mm	±1.0	±0.5
	Length	≤1000mm	±1.0	±0.5
2	Squareness Tolerance mm/m		≤1.2
3	Color ΔE		≤1.0
4	Glossiness 60°%	Thickness ≤0.30 mm	≤25
		Thickness ＞0.30 mm	≤16
5	Surface Roughness	Ra μm	0.8~1.6
		Rz μm	5~12
6	Surface		matt/matt ,flat, no goffer, no matt defect, no dust.
7	Impurity Quantity	Grain dia.0.3-0.5mm	≤12/m²
		Grain dia.＞0.5mm	Not allowed
8	Fluorescence		No Fluorescence
9	Tensile Strength	M D MPa	≥40
		T D MPa	≥40
10	Vicat Softening Point (B50) ℃		B50=88±2
11	Density g/cm³		1.35±0.05
12	Surface Tension dyne/cm		Front≥36 back≥34
13	Heat Shrinkage % (140±2℃ 10min)	Thickness mm	Heat Shrinkage %
		0.15~0.20	M D≥-14.0 C D≤+4.0
		0.21~0.27	M D≥-12.0 C D≤+3.5
		0.28~0.35	M D≥-9.0 C D≤+3.0
		0.36~0.47	M D≥-7.0 C D≤+2.5
		0.48~0.60	M D≥-5.0 C D≤+2.0
		0.61~0.82	M D≥-4.0 C D≤+1.5
14	Bending times		≥1000
15	Distortion times		≥1000
